High-temperature crude oil data acquisition
The system must operate reliably under extreme high-temperature pipeline conditions.
FEATURED PROJECT
NIGER-BENIN CRUDE OIL PIPELINE PROJECT
Data Acquisition & Monitoring System & Sampling System for Long-Distance Crude Oil Transfer
VIEW DETAILS
PROJECT REQUIREMENTS
Representative Flow-Proportional Sampling
Sampling must follow actual transfer flow to help obtain representative crude oil samples.
Real-Time Process & Sampling Monitoring
Key crude oil parameters and sampling data must remain continuously visible.
ZHYQ-II ENGINEERING SOLUTION
HARDWARE FEATURES
- Flow-Proportional Sampling
- Accurate Sampling Parameters
- Instrumented Sampling Chambers
- Sampling Sequence & Interlocking
PROCESS MONITORING & DATA MANAGEMENT
- Real-Time Multi-Point Data
- Real-Time Data View & Alarm
- Crude Oil Data Trends
- Data & Event Export
- Real-Time Flow & Sample Count
- Real-Time Key Sampling Parameter View
- Sampled Data List
The system is engineer-made and tailored to fit data acquisition and sampling under extreme conditions and harsh environments.
REAL-TIME PROCESS & SAMPLING DATA
OTHER PROJECT EXPERIENCE
ZNYB sampling systems have been applied in different operating environments and project conditions.
SOUTH CHINA SEA PROJECT
Application
Marine / Offshore
Delivered
Project-configured ZHYQ-II crude oil sampling solution
Focus
Offshore installation and operating environment
GUINEA OIL TERMINAL PROJECT
Application
Marine Oil Terminal
Delivered
Terminal crude oil transfer sampling solution
Focus
Representative flow-proportional sampling
TAKEN OILFIELD - NIGERIA PROJECT
Application
Oilfield Crude Oil Gathering & Transfer
Delivered
Crude oil sampling and parameter collection
Focus
Customized field application

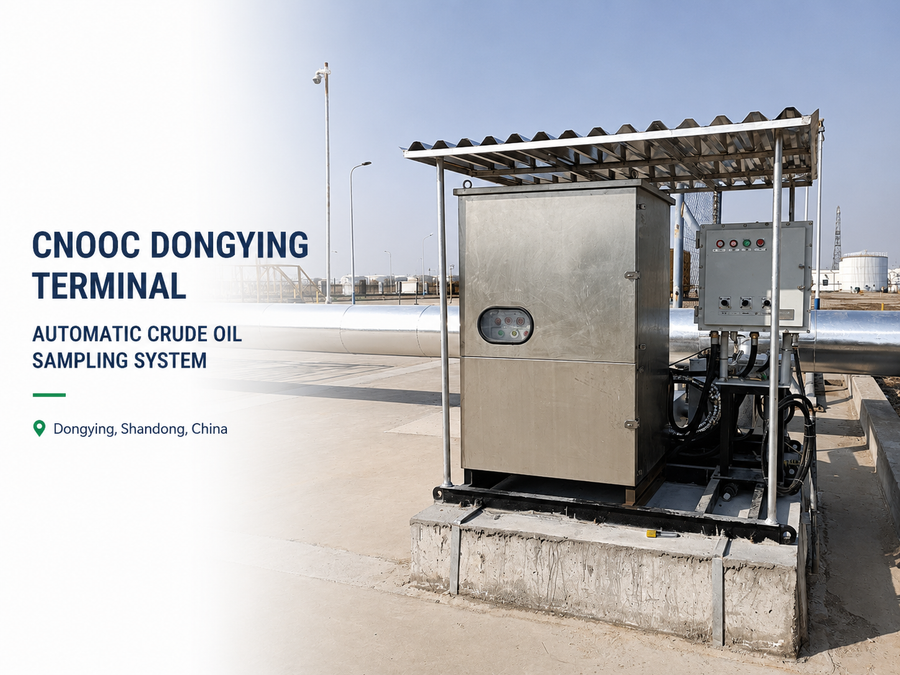

NIGER PGS JOINTS VOGELUNG
Application
Project Cooperation
Delivered
ZNYB is working to improve our operating system for different project scenarios
Focus
International project support
ENGINEERING APPROACH FOR EVERY PROJECT
- 01 REQUIREMENT ANALYSIS Understand project conditions, validate requirements and define solutions.
- 02 ENGINEERING DESIGN System architecture design, engineering calculations, 3D modeling & configuration.
- 03 MANUFACTURING & FAT Precision manufacturing with factory acceptance testing under strict standards.
- 04 DELIVERY & INSTALLATION On-time delivery and site installation & commissioning support.
- 05 COMMISSIONING & TRAINING System commissioning and operator training.
- 06 AFTER-SALES SUPPORT Technical support and maintenance to ensure long-term reliability.
PROJECT CONSULTATION
HAVE A SIMILAR PROJECT?
Tell us your requirements. Our engineering team will help you build the right system with confidence.
